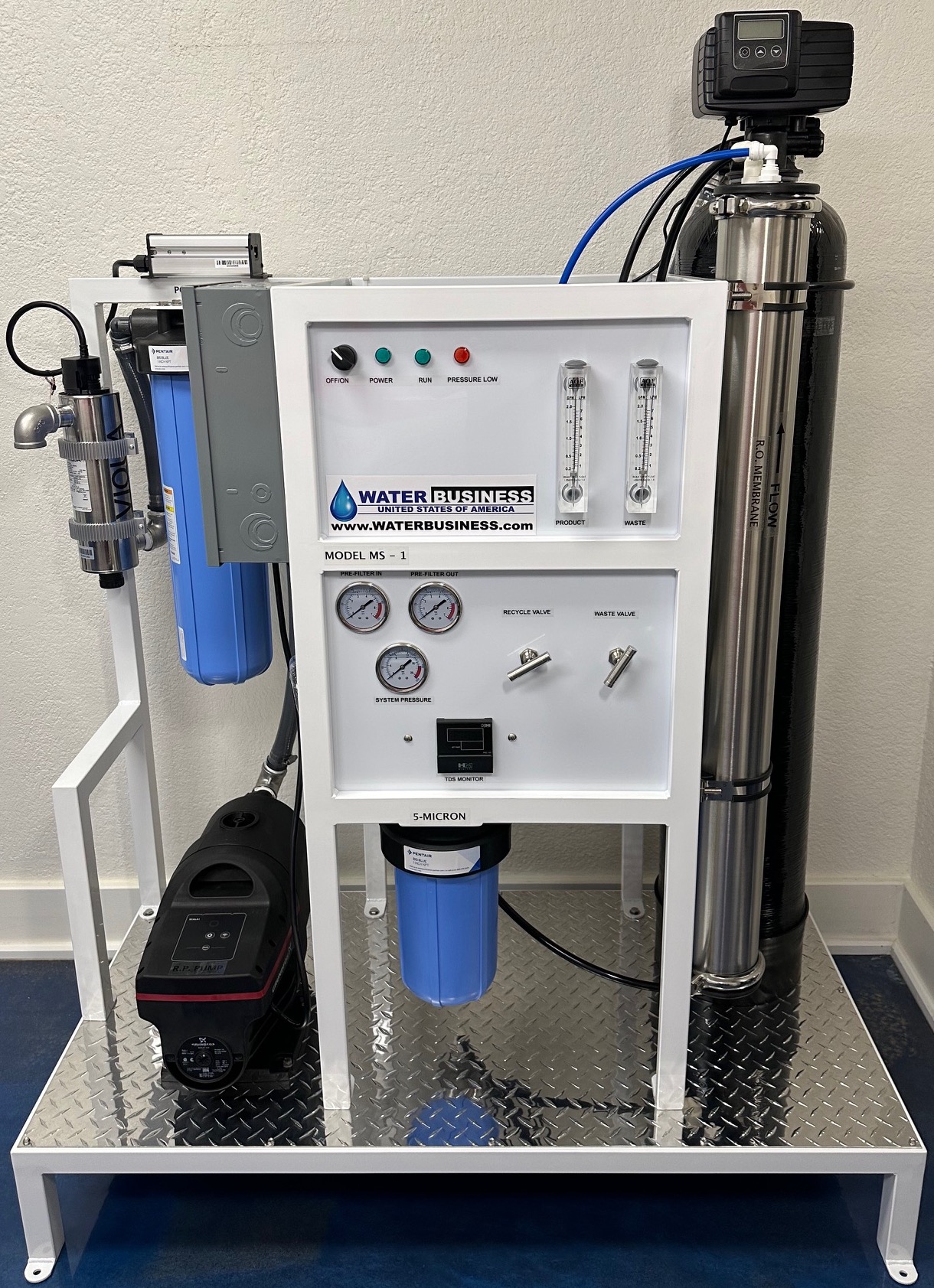

The Mini Skid RO System

The Mini Skid is a high-quality, reliable, compact space saving commercial reverse osmosis water purification system capable of producing up to 3,000 gallons per day of pure clean drinking water.

Mini SkidIt is a complete reverse osmosis water filtration system and water delivery system, making it perfect for water projects with limited space due to its compact size.

This system is currently used domestically and internationally in various commercial applications such as water stores, bottling plants, bagging plants, beverage production, breweries, and many more.

The Mini Skid is a TFC membrane reverse osmosis filter system that is designed to consistently and reliably produce 1,500-3,000 gallons per day of pure water under 10ppm. It can also be configured to produce purified alkaline water at any production level.

The Mini Skid commercial reverse osmosis filtration system features a very similar design and technology as our Diamond Skid, yet in a compact space saving design allowing you to produce high quality purified water in an efficient process.

Like our other commercial water purification systems, the Mini Skid is designed to be very reliable with low maintenance costs. The system is designed and comprised of basic electrical components that are much more reliable and easily accessible than the fail prone microprocessors that many other systems use. The system does not use any proprietary parts or microprocessors allowing for low maintenance costs.

The Mini Skid reverse osmosis water purification system is deigned, manufactured, and assembled in the USA using NSF approved components. This reverse osmosis system includes a 1 year warranty on parts due to manufacturer defect and ongoing technical support via phone or email. The Mini Skid reverse osmosis filter system is very user friendly and includes a detailed operation manual that covers user instructions as well as maintenance and installation guidelines.

The MS-1 Water Purification Process

  • STEP 1: Carbon – an activated carbon filter that removes chlorine, chloramine, solvents, lead, insecticides, gasses, and other harmful contaminants. Works as a water softener, without the use of salt and drawing hardness particles together and crystallizing them. Includes an automatic backwashing system.
  • STEP 2: 5 Micron Pre-Filter – removes particles, sediments, and algae.
  • STEP 3: R.O. Pump – high pressure, stainless steel pump to boot water pressure to 160 lbs. for maximum membrane efficiency.
  • STEP 4: Reverse Osmosis Membrane – water is forced through a semi permeable, .0002 micron membrane, allowing only pure water molecules to pass.
  • STEP 5: Storage – water is stored in FDA approved tanks.
  • STEP 6: Repressurized System – pressure pump assures constant water supply from storage tanks to post carbon filter, ultraviolet sterilizer, and faucets.
  • STEP 7: Pressure Tank – This pressurized tank assures a constant flow of water to the filler and prolongs pump life.
  • STEP 8: Post Carbon Filtration – water travels through a 4.5in x 20in coconut shell carbon block filter, polishing it for an exceptionally smooth taste.
  • STEP 9: Ultraviolet Sterilizer – stainless steel sterilizer eliminates up to 99.9% of all bacteria.
  • STEP 10: Optional – ozone may be added to water storage tanks to prevent future bacterial growth.

Features:

  • Powder coated steel frame with aluminum diamond plate base
  • Prewired electrical panel – circuit breaker
  • Stainless steel booster pump
  • R.O. level controls
  • Automatic backwash on pre-treatment
  • Stainless steel jackets
  • System pressure gauge
  • Pre and post filter gauges
  • Waste and recycle valves
  • Product and waster flow meters
  • Pressure pump – 12 GPM
  • Ultraviolet sterilization light – 12 GPM
  • Stainless steel membrane housings
  • All components and materials are either NSF/FDA/UL/ETL approved

Options:

  • Ozone Generator
  • Feed Pump
  • TDS meter
  • Hour meter

Specifications:
Feed water:

  • Temperature: 35°-85°
  • Pressure: 40-80 psi
  • Operating pressure: 160 psi
  • Total Dissolved Solids (TDS): 2000 ppm

Tolerance:

  • Iron: 0.5 ppm
  • Silica: 25 ppm@50%
  • Recovery pH range: 3–11
  • Water recovery—up to 60%
  • Salt rejection—90-98%+

Model

Gallons/Liters Per Day*

Gallons/Liters Per Minute*

Dimensions

Price

MS-1

1,500G/5,625L

1.04/3.90

60Lx24Wx64H

Please Call For Pricing

MS-2

3,000G/11,250L

2.08/7.81

60Lx24Wx64H

Please Call For Pricing

*Note: System flow rates are based on 77 degree Fahrenheit incoming water temperature.

Click For The Mini Skid Flyer

Click Here For Water Test Contaminants & Solutions

Please call before ordering with any and all questions regarding the equipment, uses, specifications, installation, or any other questions. We have a very friendly and helpful customer service department that can be reached during normal business hours; Monday-Friday 8am-5pm PST.

Also, for best results it is highly recommended to obtain a water analysis test in order to find which contaminants are present in the water supply. Feel free to reference our Water Problems Page or call our Customer Service Personnel for a better understanding of the different contaminants and their effects/consequences.
