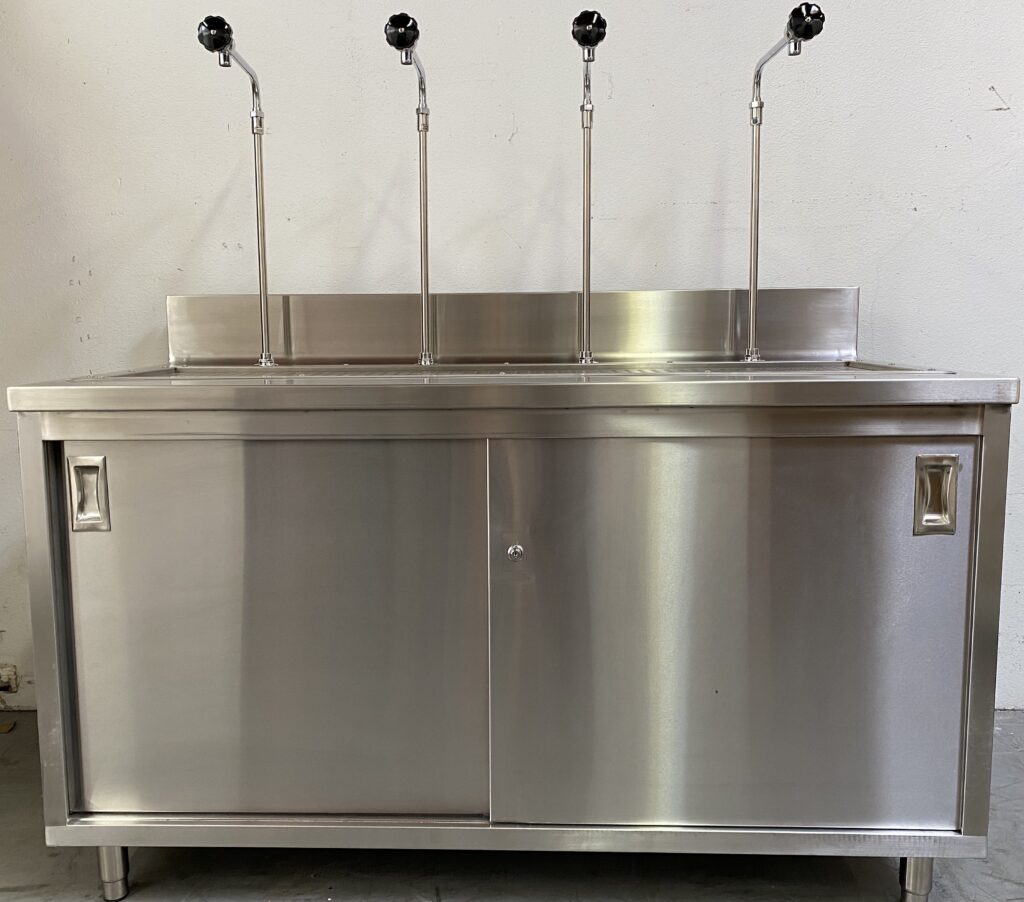

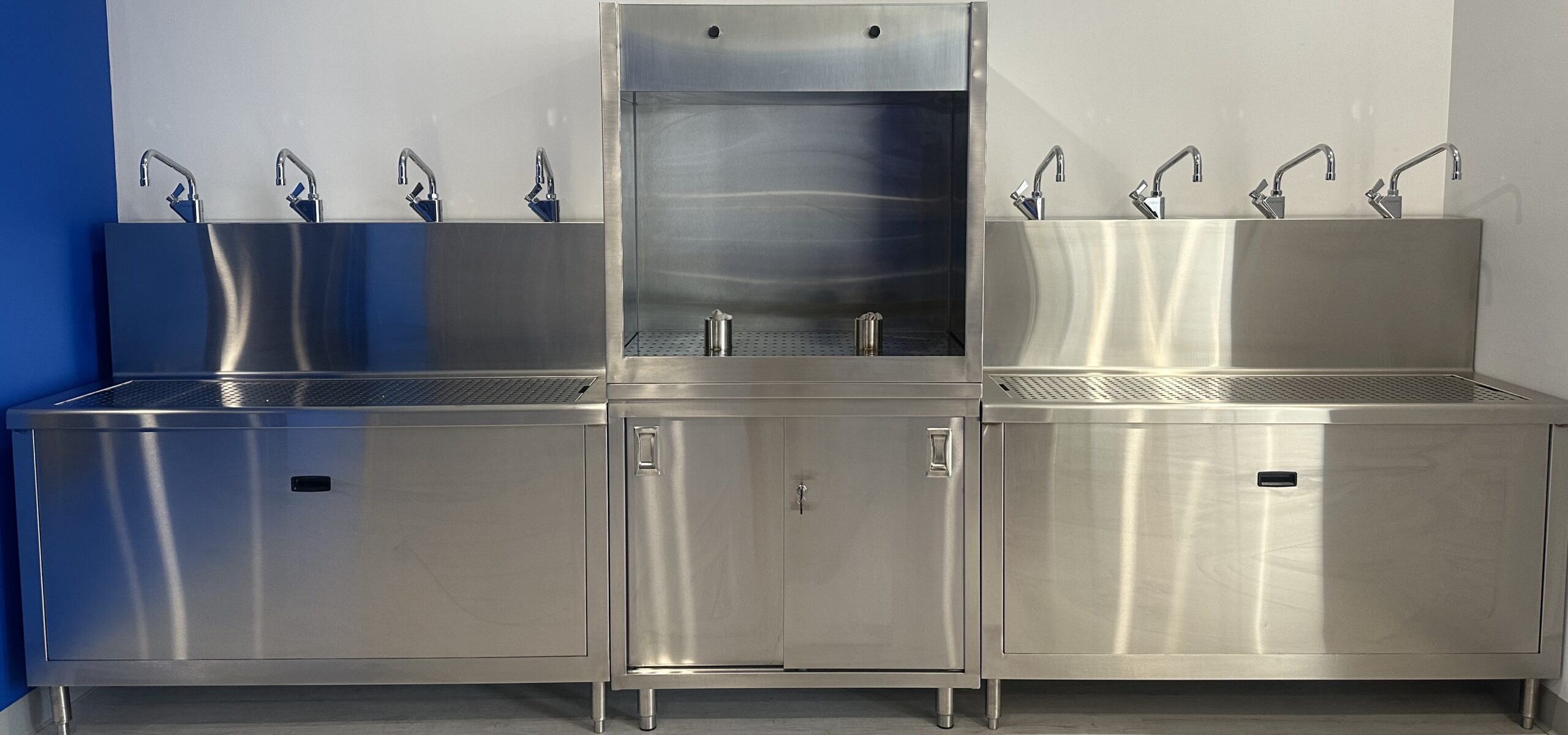

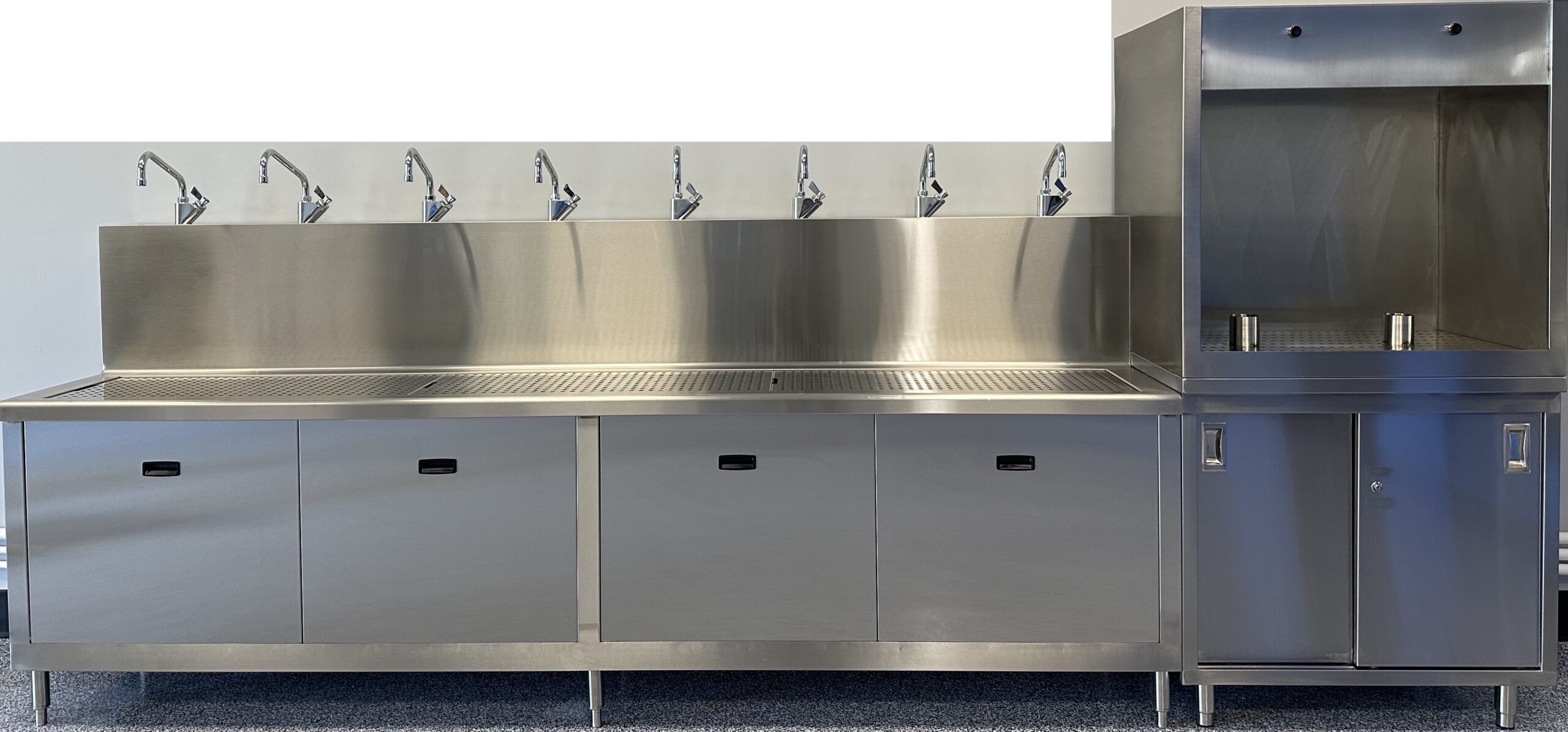

Fill Station

The Fill Station is a high-quality manual water bottle filling station or fill table that is commonly used in retail water projects such as water stores and bottling plants. It provides the easiest, fastest method for filling a variety of water containers for water stores.

This water bottle fill station can be used to fill any container up to 20 inches tall (50cm) and is available in models ranging from 4 to 8 faucets. The Fill Station water bottle fill table is available with either a custom Corian or attractive Formica finish with many colors to choose from allowing it to match the theme and colors of any water store or bottling plant. The Fill Station water bottle filling station features stainless steel faucets and sinks for a durable yet attractive finish.

The Fill Station water bottle filling station comes with 4, 6 or 8 fill outlets for your convenience, and is available in either a high back or low back model. All models of the Fill Station are pre-plumbed and ready to install upon delivery. All models of the FILLSTATIONTM have stainless steel faucets with cross contamination guards to ensure that you are filling with uncontaminated water.

This water bottle fill table is very popular in many water stores worldwide and is built to be very durable to withstand the traffic in water stores and bottle filling plants.

The Fill Station water bottle fill table is made in the USA with NSF approved components and high quality materials. It is also available in a stainless steel version at an additional cost.

The Fill Station can be configured to be more than just a water bottle filling station by implementing an ozone bottle rinse in place of one faucet. For example, a 4-fill can be configured to have 3 faucets and 1 bottle rinse.  We can manufacture it in any configuration to include any number bottle rinses and faucets you require. All of the faucets have an internal shut-off valve if you wish to close off individual faucets.

Also the Fill Station water bottle fill table can be configured to deliver different types of water to different faucets. For example, if you wish to have an 8-fill with 2 faucets for alkaline water and 6 faucets for purified water, the Fill Station can be easily manufactured in such a way or modified at a later date.

The FILL STATION features:

  • Finish—Choice of assorted Corian, Formica Colors, and Stainless Steel
  • Low back Fill Station—Chrome plated brass nozzles
  • High back Fill Station—Chrome plated brass nozzles
  • Handheld Fills—Available at no extra charge
  • Sinks—Stainless steel
  • Cross contamination guards
  • Storage and access doors
  • Pre-plumbed and ready to install
  • Individual Faucet Internal Shut Off Valves
  • Available in two models—High back & Low back



Options

  • Bottle Rinse Nozzles
  • Stainless Steel Finish
  • Corian Finish



Specifications and sizing:

  • Plumbing—1” water inlet; 1” drain line

Model

Faucets

Dimensions

Price***

FS-4      Low Back

4

58”L x 30”W x 38”H

Please Call For Pricing

FS-4     High Back

4

58”L x 30”W x 52.75”H

Please Call For Pricing

FS-6      Low Back

6

118”L x 30”W x 38”H

Please Call For Pricing

FS-6     High Back

6

118”L x 30”W x 52.75”H

Please Call For Pricing

FS-8      Low Back

8

118”L x 30”W x 38”H

Please Call For Pricing

FS-8     High Back

8

118”L x 30”W x 52.75”H

Please Call For Pricing

*Additional Charge For Corian Finishes

**Please Call for Stainless Steel Fill Table Prices

***Prices states are Manufacturer Suggested Retail Prices. When ordering directly from us these prices are often less due to the various equipment package discounts we offer. Please call us at (760) 744-4800 or submit a quote request to get actual pricing.

Click For The Fill Station Flyer
